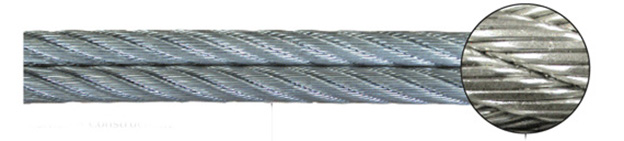

Wire Rope

Logging operation with Tajfun winches is brought to perfection with high quality wire rope with steel core.

You can choose the wire rope that proved best during out tests in the following diameters:

• wire rope PYTHON 6 F-V 9 mm
• wire rope PYTHON 6 F-V 10 mm
• wire rope PYTHON 6 F-V 11 mm
• wire rope PYTHON 6 F-V 12 mm
• wire rope PYTHON 6 F-V 14 mm

Producer: www.vdw-python.com

Metric Python® Construct-6
diameter of rope mm	minimum strenght 1960 N/mm kN	weight per m kg
8	67.1	0.37
9	82.2	0.46
10	98.3	0.55
11	116.2	0.65
12	135.6	0.76
13	156.3	0.87
14	178.5	1.01
15	202.5	1.13
16	229.9	1.29
18	283.1	1.59
